Prototype Lab

Make it Real

Tools and tech to bring your ideas to life

Whether you're working on a design for a senior capstone project or exploring solutions for a research project, you'll find the tools you need—from CNC machines to 3D printers. These facilities are growing fast, and you’ll grow with them. New equipment is added regularly to meet student needs. As the space evolves, so do your opportunities to learn, build and innovate. The Prototype Lab is located in the Brown County STEM Innovation Center, right at the heart of hands-on learning at UW-Green Bay.

Browse Equipment

Prototype Equipment

Browse our equipment uses, capabilities and specifications below. The lab continues to evolve—more advanced equipment is already in the pipeline, some of which would be for prototyping and others for material testing.

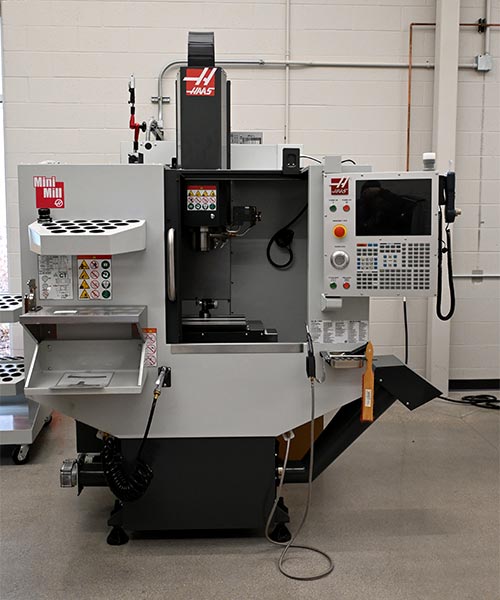

UWGB Prototype Lab CNC HAAS Mini Mill

CNC Mill

The HAAS Mini Mill is a compact CNC vertical machining center designed for small-scale precision machining. The HAAS Mini Mill is surprisingly versatile for its size—you can make a wide range of precision parts and prototypes, including:

  • Custom brackets & mounts for robotics, automotive, or aerospace applications
  • Aluminum & steel housings for electronics or mechanical assemblies
  • Engraved nameplates or signage with intricate detailing
  • Tooling components like jigs, fixtures and soft jaws
  • Small molds & dies for plastic injection or casting

Capabilities

  • User-Friendly Operation
  • High-Speed Machining: Optimized for fast spindle speeds and rapid movements.
  • User-Friendly Interface: Haas CNC control for easy operation.

Specifications

  • Travels (X, Y, Z): 16″ x 14″ x 15″
  • Spindle Speed: Up to 8,000 RPM
  • Spindle Motor: 7.5 HP
  • Tool Capacity: 10-station automatic tool changer
  • Table Size: 36″ x 12″
  • Max Torque: 45 ft-lbf @ 500 RPM

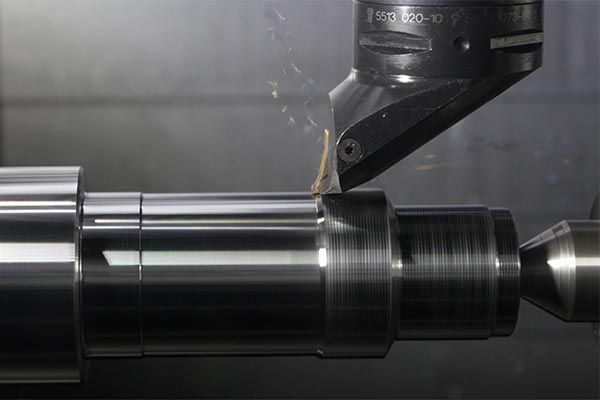

UWGB Prototype Lab HAAS TL-2 CNC Lathe

CNC Lathe

The HAAS TL-2 is a CNC Lathe designed for precision machining with an easy-to-use interface. When it comes to turning operations. With it, you can create:

  • Precision shafts & bushings for automotive, aerospace, or industrial machinery
  • Threaded components like custom bolts, nuts, and pipe fittings
  • Cylindrical housings & enclosures for electronics or mechanical assemblies
  • Prototypes of turned parts for R&D or small-batch production
  • Custom tooling such as mandrels, arbors, or soft jaws for other machines

Capabilities

  • User-Friendly Operation
  • Precision Machining: Offers high accuracy for small to medium-sized part production.
  • Conversational Programming: No G-code knowledge required for basic operations.

Specifications

  • Max Turning Diameter: 16.0″
  • Max Turning Length: 48.0″
  • Max Bar Capacity: 2.0″

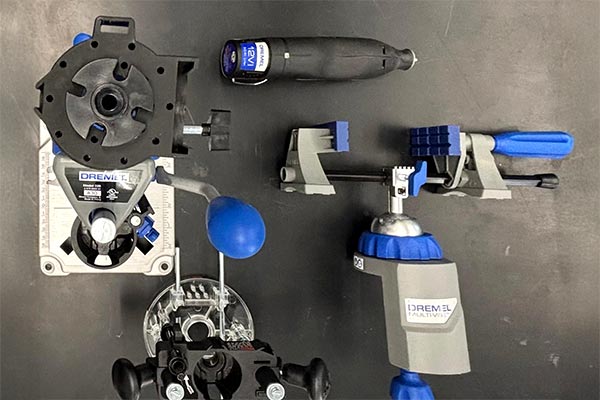

UWGB Prototype Lab Dremel rotary tool kit

Rotary Tool: Dremel 8250

The Dremel 8250 is a high-speed brushless rotary tool designed for advanced DIYers and professionals. Use the Dremel kit for a diverse range of purposes:

  • Cutting: Wood, plastic, metal, drywall, and even bolts with the right cutting wheels
  • Sanding: Smooth rough edges, shape wood or prep surfaces for painting
  • Grinding & Sharpening: Touch up blades, tools or even remove rust from metal parts
  • Drilling: Make precise holes in soft materials like wood, plastic or thin metal
  • Engraving & Carving: Personalize glass, metal, or wood with detailed designs
  • Polishing & Cleaning: Buff jewelry, restore headlights, or clean up metal surfaces

Capabilities

  • Brushless Motor
  • Extended Runtime
  • Versatile Applications: Compatible with all Dremel rotary accessories and attachments, allowing for cutting, sanding, grinding, drilling, and more.
  • Digital Display: Shows speed, battery life, and warning indicators for overload or excessive temperatures.

Specifications

  • Battery: 12V Max Li-Ion, 3.0Ah capacity.
  • Collet Capacity: 1/8-inch, compatible with various available accessories.
  • Weight: 20.6 oz (0.59 kg), lightweight for easy handling.
  • Grip Design: Soft rubber grip for better control and comfort during extended use.

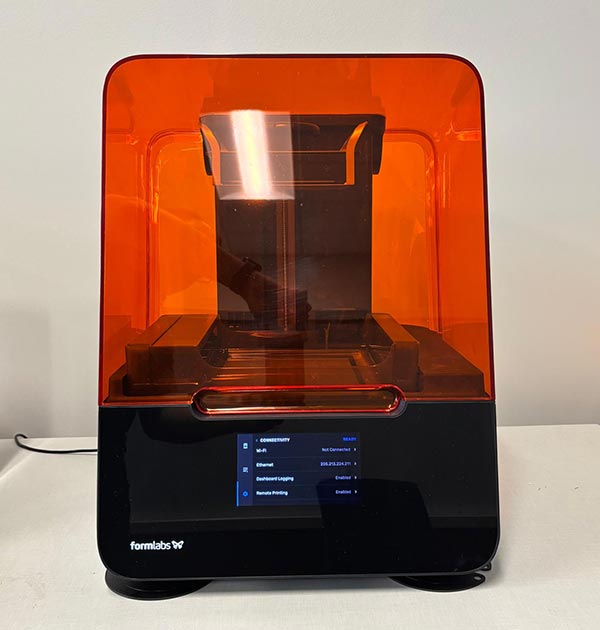

UWGB Prototype Lab Formlabs Form 3 3D Printer

3D Printer: Formlabs Form 3

The Formlabs Form 3 is an industrial-quality desktop resin 3D printer that uses Low Force Stereolithography (LFS) technology to produce high-precision prints. Uses and applications include:

  • Prototyping: Create detailed prototypes with smooth surfaces and tight tolerances.
  • Engineering Parts: Print functional components using tough, rigid or flexible resins—great for jigs, fixtures and enclosures.
  • Medical & Dental Models: With biocompatible resins, it’s used for surgical guides, dental aligners and anatomical models.
  • Jewelry Casting: Use castable wax resins to produce intricate jewelry patterns ready for investment casting.
  • Custom Tools & Molds: Print molds for injection molding, thermoforming, or even silicone casting.

Capabilities

  • High Accuracy & Reliability: Produces smooth, detailed prints with minimal layer lines.
  • Advanced Materials: Compatible with over 30 validated materials, including biocompatible and engineering-grade resins.
  • Automated Resin Handling: Features a spill-free, swappable cartridge system for easy material changes.
  • Wireless Printing: Supports Wi-Fi, Ethernet, and USB-C connectivity.
  • User-Friendly Software: PreForm is a software used for easy print preparation and management

Specifications

  • Build Volume: 145 × 145 × 193 mm (~5.75 × 5.75 × 7.75 in).
  • Layer Thickness: 25–200 µm (0.001–0.008 in).
  • XY Resolution: 50 µm, with anti-aliasing for enhanced fine details.
  • Print Speed: Up to 100 mm/hour, depending on material.
UWGB Prototype Lab Stratasys F170 3D Printer

3D Printer: Stratasys F170

The Stratasys F170 is an industrial-grade FDM 3D printer designed for engineers, educators, and designers who need reliable, high-quality prints. Here’s a breakdown of its uses and applications:

  • Rapid Prototyping: quickly produce prototypes to test form, fit and function
  • Manufacturing Aids: It’s great for printing jigs, fixtures and custom tools that streamline production processes
  • End-use Parts: With materials like carbon-fiber-reinforced ABS and flexible TPU, it can produce durable, low-volume production parts

Capabilities

  • User-Friendly Operation: Features GrabCAD Print software for a streamlined CAD-to-print workflow.
  • Versatile Material Options: Supports PLA.
  • Soluble Support Material: Allows for complex geometries with hidden cavities.
  • Fast-Draft Mode: Prints initial design concepts quickly while consuming half the material on average.

Specifications

  • Build Volume: 254 × 254 × 254 mm (10 × 10 × 10 in).
  • Layer Thickness: 0.127 mm – 0.330 mm (0.005 – 0.013 in).
  • Accuracy: ±0.200 mm or ±0.002 mm/mm

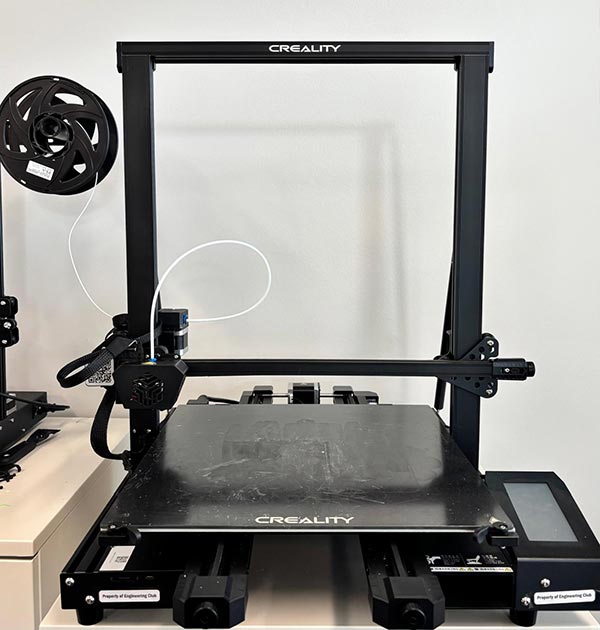

UWGB Prototype Lab Creality CR-6 Max 3D Printer

3D Printer: Creality CR-6 Max

The Creality CR-6 Max is a large-format FDM 3D printer designed for users who need high precision and reliability for big projects. Here’s a breakdown of its uses and applications:

  • Print Large Pieces: In one go
  • Functional Prototypes: Ideal for engineers needing big, durable parts for testing or demonstration.
  • RC Vehicle Bodies or Drone Frames: Its precision and size make it perfect for hobbyists building custom rigs.
  • Educational Models: Print large anatomical models, molecules or mechanical assemblies.

Capabilities

  • Massive Build Volume: 400 × 400 × 400 mm (~15.75 × 15.75 × 15.75 in), ideal for large-scale prints.
  • Automatic Bed Leveling: Uses a strain-based leveling system for easy setup and consistent print quality.
  • High-Precision Printing: Features a dual Z-axis and double pull rod for enhanced stability.
  • Touchscreen Interface: Provides an intuitive and user-friendly experience.
  • Filament Run-Out Sensor: Automatically pauses prints when filament runs out, preventing failed prints.

Specifications

  • Layer Height: 0.1–0.35 mm, allowing for fine detail.
  • Max Hot End Temperature: 260°C, compatible with various filaments like PLA, ABS, TPU.
  • Max Heated Bed Temperature: 90°C, ensuring strong adhesion

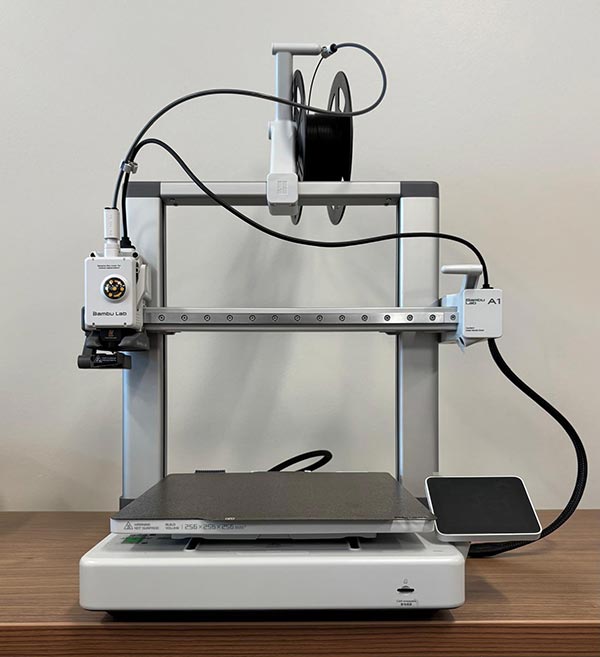

Bambu Lab AI 3D Printer

3D Printer: Bambu Lab A1

The Bambu Lab A1 is a high-speed FDM 3D printer designed for precision and ease of use. Here’s a breakdown of its uses and applications:

  • Functional Prototypes: Design and test mechanical parts, enclosures, or product concepts
  • Miniatures & Models: Architectural mockups
  • Educational Tools: Create anatomical models, math manipulatives or science demos
  • RC & Drone Parts: Lightweight, durable components like frames, mounts and guards

Capabilities

  • Fast Printing Speeds: Can reach up to 500 mm/s, with 10,000 mm/s² acceleration for rapid prototyping.
  • Automatic Bed Leveling: Uses a strain-based leveling system for consistent first layers.
  • High-Temperature Printing: Supports up to 300°C hot end temperature, allowing for a wide range of filaments.
  • Filament Monitoring: Includes run-out detection, filament odometry, and tangle sensors to prevent print failures.
  • Integrated Camera: Allows for remote monitoring and time-lapse recording.
  • Multi-Connectivity Options: Supports Wi-Fi, Bambu-Bus, and microSD card storage.

Specifications

  • Build Volume: 256 × 256 × 256 mm (~10.1 × 10.1 × 10.1 in).
  • Nozzle: 0.4 mm (included),
  • Max Heated Bed Temperature: 100°C, compatible with various build plates.
  • Supported Filaments: PLA, PETG, TPU, PVA
Bambu Lab AI 3D Printer

3D Printer: Bambu Lab H2D

3D Printer Bambu Lab H2D is a cutting-edge, all-in-one desktop manufacturing system that goes far beyond traditional 3D printing. Here’s a breakdown of its uses and applications:

  • 3D Printing: Functional prototypes like gears, brackets, enclosures, and mechanical parts using engineering-grade filaments; Miniatures and models, highly detailed figurines, architectural mockups; Custom tools and jigs, tailor-made fixtures for workshop or production use.
  • Laser Cutting & Engraving: (with optional module); Wood, acrylic, and leather crafts like coasters, signs, jewelry, and intricate inlays; Engrave names or designs on surfaces.
  • Digital Cutting: Vinyl stickers and decals; Paper, intricate cards or stencils; Leather and fabric: for prototypes or accessories.
  • Pen Plotting: Automated drawing to create technical diagrams, calligraphy, or custom illustrations.

Capabilities

  • 3D Printing Technology: Fused Deposition Modeling (FDM)
  • Laser Cutting & Engraving: 10W or 40W laser modules (optional)
  • Digital Cutting: For vinyl, paper, leather (up to 0.5 mm thick)

Specifications

  • Build Volume: Single Nozzle: 325 × 320 × 325 mm; Dual Nozzle: 300 × 320 × 325 mm
  • Max Print Speed: 1000 mm/s (with 20,000 mm/s² acceleration)
  • Max Nozzle Temp: 350 °C
  • Max Bed Temp: 120 °C
  • Chamber Heating: Up to 65 °C (active)
  • Supported Filaments: PLA, PETG, TPU, ABS, ASA, PC, PA, PVA, BVOH
Bambu Lab AI 3D Printer

3D Printer: Bambu Lab X1

3D Printer Bambu Lab X1 is a high-speed, FDM 3D printer designed for precision, speed, and multi-material printing.

  • Functional Prototypes: Mechanical parts like gears, brackets, and enclosures; Snap-fit assemblies for product testing; Tooling aids such as jigs and fixtures
  • Artistic & Decorative Items: Sculptures with intricate geometry; Miniatures and figurines for tabletop games
  • RC Car or Drone Parts: like frames, mounts, and guards
  • Educational Models: Anatomical models for biology or medical training; Mathematical shapes and engineering concepts; Interactive teaching tools for classrooms
  • Multi-Material Creations (with AMS): Multi-color prints for signage, toys, or branding; Flexible + rigid combos like TPU hinges in PLA shells; Support-free complex parts using dissolvable filament

Capabilities

Precision & Intelligence; Multi-Material & Color

  • Lidar Sensor: 7 μm resolution for first-layer inspection and flow calibration
  • Dual Auto Bed Leveling: Combines lidar and analog force sensors for redundancy
  • AI Features: First-layer inspection, spaghetti failure detection
  • AMS (Automatic Material System): Supports up to 16 colors/materials with AMS units
  • Filament Compatibility: PLA, PETG, TPU, ABS, ASA, PC, PA

Specifications

  • Printing Technology: Fused Deposition Modeling (FDM)
  • Build Volume: 256 × 256 × 256 mm
  • Max Print Speed: 500 mm/s (with 20,000 mm/s² acceleration)
  • Nozzle Temp: Up to 300 °C (hardened steel nozzle)
  • Bed Temp: Up to 120 °C
  • Chamber Temp: Up to 60 °C (passively heated)

Have an Idea?

Have questions or want to explore what's possible? Contact Engineering Lab Director Diego Guzmán to talk tools, ideas and possibilities.

Contact Us
